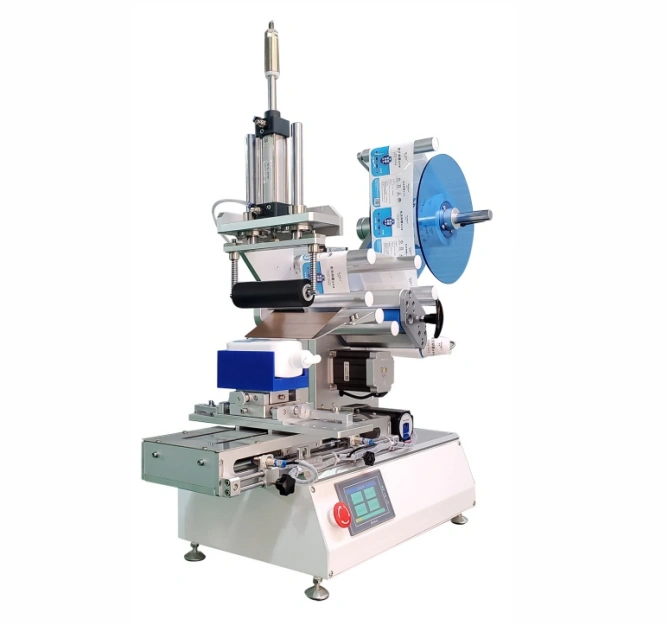

Semi-Automatic Front and Back Rolling Labeling Machine


Semi-automatic front and back rolling labeling machine is designed for flat, curved and some concave product high-precision labeling. It adopts a rolling adhesive structure and an intelligent control system to achieve accurate front & back label positioning and stable adhesion. The equipment can effectively solve problems such as low efficiency, inconsistent labeling, easy air bubbles generation and misalignment during manual operation.



This machine operates stably and is easy to use. It is suitable for rapid switching of multiple specifications of products and can meet the labeling requirements of the electronics, digital and packaging industries. Mainly application area includes electronic industry, digital industry, food packaging industry, toy industry, cosmetics and toiletries industry and plastic products industry. And mainly labeling service products such as: toys, SD cards, mobile phone batteries, FPCs, chargers, electronic components, plastic packaging boxes, food packaging, digital products, etc.


Technical Parameters The following are the technical parameters of the standard model, if have other special requirements and functions can be customized
Labeling Accuracy ±0.5mm (not include product & label error)
Labeling Speed
15~30 pcs/min (related to product size)
Applicable Product Dimensions
length 20~120mm    width 20~180mm    thickness 0.2~75mm
Applicable Label Size
length 15~300mm    base paper width 25~155mm
Device Dimensions
995*432*966mm
Applicable Power Supply
220V/50HZ
Weight
56KG
Applicable Label Roll Inner Diameter Φ 76mm
Applicable Label Roll Outer Diameter
Φ 280mm
Air Pressure
0.4~0.6Mpa
