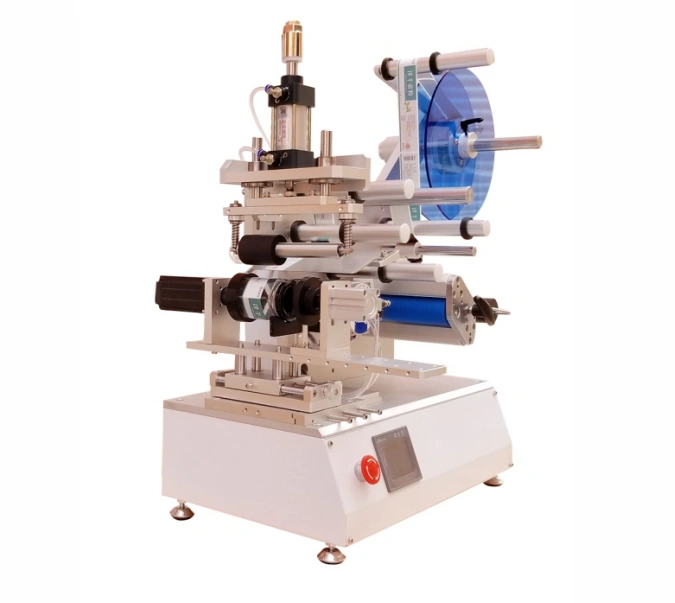

T805 Semi-automatic 360°full-wrap labeling machine is always used for round, square, polygonal, and irregularly shaped containers labeling. Adopting rolling-on labeling, it applies in industries such as daily chemicals, cosmetics, food, beverages, pharmaceuticals, chemicals with high precision surface labeling. This labeling machine is with compact structure, easy operation and high precision labeling, and it can meet most of the small-to medium batch and diverse specification labeling request. By replacing the fixtures and adjusting the labeling mechanism, it can be used for various product shape and size, and also enables multi-purpose use, increasing production efficiency, and reducing labor costs.
Why choose T805 Semi-automatic 360°full-wrap labeling machine
T805 possesses both the superiority with high precision, high compatibility and cost-effectiveness, it is typically suitable for small and medium-sized enterprises (SMEs), multi specification production and new products trial production. Compared with manual labeling, it can significantly improve labeling efficiency and consistency, reduce manual mistake, and help improve enterprises image and enhance market competitiveness.
Applicable Industries:
|
Technical Parameters |
The following are the technical parameters of the standsrd model, if have other special requirements and function can be customized |
|
Labeling Accuracy |
±0.5mm (not include product and labeling error) |
|
Labeling Speed |
15-30 pcs/min (realed to product size) |
|
Applicable Product Dimensions |
Length 20-200mm Width 20-180mm Thickness 5-130mm |
|
Applicable Label Size |
Length 15-300mm Width (base paper) 25-160mm |
|
Device Dimensions |
843*759*895mm (L*W*H) |
|
Applicable Power Supply |
220V/50HZ |
|
Weight |
57KG |
|
Applicable Label Roll Inner Daimeter |
Φ76mm |
|
Applicable Label Roll Outer Daimeter |
Φ280mm |
By using rolling-on labeling technology, it can achieve 360°full-wrap labeling , and also can ensure label smooth, free of air bubbles and wrinkles to enhance product's visual quality.
Not only applicable to regular-shaped containers such as round, square, and hexagonal bottles, it can also achieve labeling requirements for special workpieces such as irregular-shaped bottles, prismatic bottles, and curved surface products by customizing fixtures.
With advanced sensing detection and mechanical positioning system, the labeling accuracy can reach ±0.5mm, thus to ensure consistent label placement and elevate the quality of product packaging.
The human-machine interface offers convenient operation and intuitive parameter settings, allowing new employees to quickly get up to speed with minimal training and lowering the barrier to use.
Suitable for diverse labeling specification and product size, and easy to adjust when switching products, can accommodates a production model characterized by high product variety and small batch sizes.
Optional color coding machine or heat transfer printing machine can be equipped. During the labeling process, production date, batch number, expiration date, LOT code and other information can be printed simultaneously, achieving the integration of labeling and coding.
This machine adopts high quality mechanical and industrial-grade electrical components, it can seep consistent stable working and low failure rate and suitable for long-term, continuous production.
