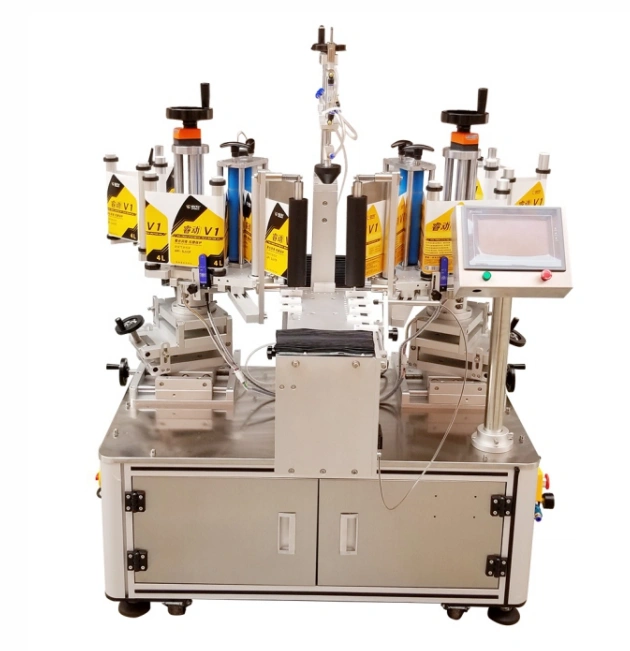

XL-T806 semi-automatic double-side labeling machine is specially designed for flat bottle, square bottle, oval bottle and various irregular shape bottle high precision labeling, This machine adopts a dual-sided synchronized labeling method to attach the labels on both sides of the product at one time accurately, thus design cansignificantly improve labeling efficiency and product appearance consistency. This labeling machine is widely applied in industries such as personal care, cosmetics, food, medicine, agrochemicals, lubricants and cleaning products, especially for small batch production, multi specification products and special package container labeling need.
Working Principle
Placing product on the positioning fixture, then the equipment can stably position the product through synchronous conveying and clamping mechanism. The servo control system will precisely delivery the labels. The label is affixed to both sides of the product by the labeling institution, and the label is then pressed firmly by the rolling device to ensure a smooth, secure and aesthetically pleasing attachment. For special products, the labeling operation of curved surfaces, uneven surfaces and irregular surfaces can be achieved by adjusting the angle of the label attachment head or by customizing dedicated fixtures.
|
Technical Parameters |
The following are the technical parameters of the standsrd model, if have other special requirements and function can be customized |
|
Labeling Accuracy |
±1.0mm (not include product and labeling error) |
|
Labeling Speed |
20-50 pcs/min (realed to product size) |
|
Applicable Product Dimensions |
customized as needed |
|
Applicable Label Size |
Length 6-300mm Width (base paper) 15-125mm |
|
Applicable Power Supply |
220V/50HZ |
|
Weight |
200KG |
|
Applicable Label Roll Inner Daimeter |
Φ76mm |
|
Applicable Label Roll Outer Daimeter |
Φ280mm |
| Voltage | 220V |
This equipment takes high quality control system and precision transmission mechanism, its labeling accuracy can reach ±0.5mm, thus to ensure the labels are positioned uniformly, look neat and tidy, and improve the overall quality of the product packaging.
Dual-sided labeling work be done within one time, no need for repeating labeling. This function can improve working efficiency, reduce manual cost, and especially suitable for labeling work that need dual-sided attaching.
Suitable for below application labeling: flat bottle, square bottle, oval bottle, plastic bottle, glass bottle, cosmetic packaging, cleaning agent bottle, lubricating oil bottle, food packaging box, and various irregularly shaped containers.
User-friendly interface design, when replacing the product, just simply adjusting the positioning mechanism can complete the specification change, significantly reducing the production cycle and improving the production efficiency.
Equipment body is made of adopts high quality aluminum alloy and stainless steel material, it possesses sturdy and durable structure, long time stable operation and low maintain cost.
